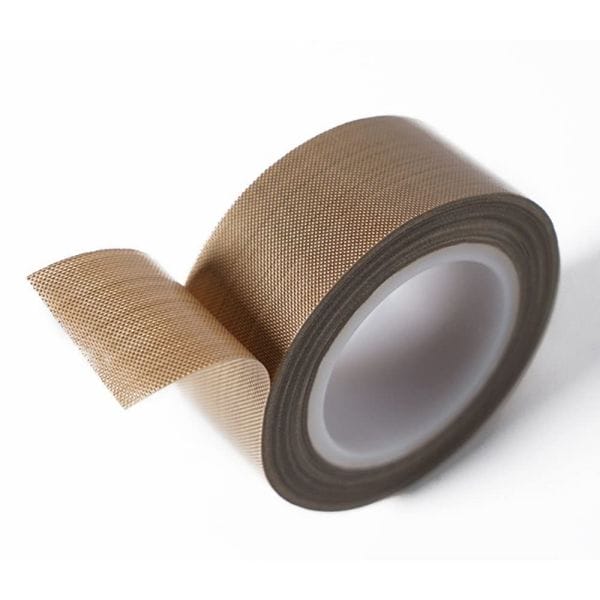

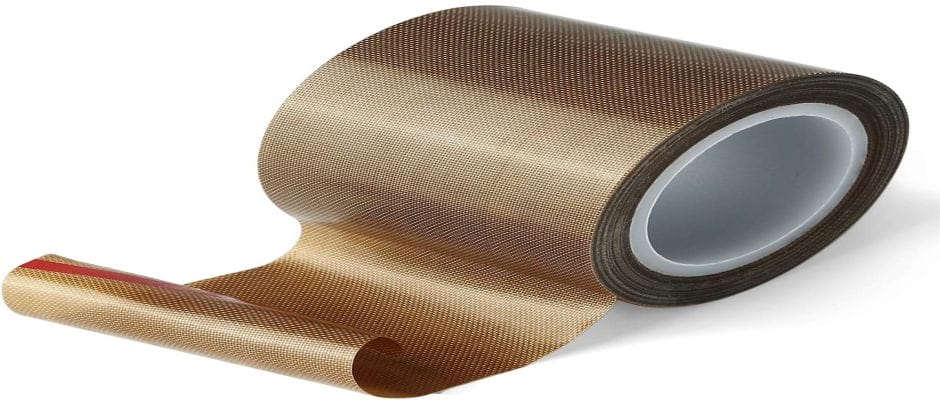

PTFE Coated Fiberglass Adhesive Tape
1. Product Overview
PTFE coated fiberglass adhesive tape is an engineered self-adhesive composite constructed from a precision woven E-glass substrate impregnated with polytetrafluoroethylene (PTFE) dispersion, coated on one side with a high-temperature pressure-sensitive silicone adhesive (PSA), and backed with a protective release liner. The smooth fluoropolymer working face provides complete non-stick release against hot polymers, melted packaging films, and viscous adhesives. The silicone adhesive layer establishes a strong bond to metal and plastic machinery surfaces under continuous operating temperatures up to 260°C while peeling off cleanly without leaving adhesive residue during maintenance replacement.
2. Core Technical Parameters
-
Base Substrate: Precision woven E-glass (fiberglass) filament fabric
-
Top Coating: Sintered polytetrafluoroethylene (PTFE / Teflon)
-
Adhesive System: High-temperature pressure-sensitive silicone adhesive (PSA)
-
Backing Protection: Textured release liner (ensures easy unrolling and precise installation)
-
Operating Temperature: -70°C to +260°C
-
Key Characteristics: Clean non-stick release surface, high peel adhesion, residue-free removal upon changeover, flame retardant, high dielectric insulation, chemical and moisture resistance
3. Common Applications
-
Heat-sealing bar, wire, and jaw wrapping on packaging machinery, L-bar sealers, bag-making machines, and vacuum pouch chambers
-
Low-friction, anti-stick surface wrapping for guide rails, hoppers, chutes, drying cylinders, and laminator guide rollers
-
Platen protection and release covers for garment heat press machines and heat transfer printing equipment
-
Electrical insulation wrapping for coils, cables, wires, and high-temperature electrical components
