Steam Trap Insulation Jackets
1. Product Overview

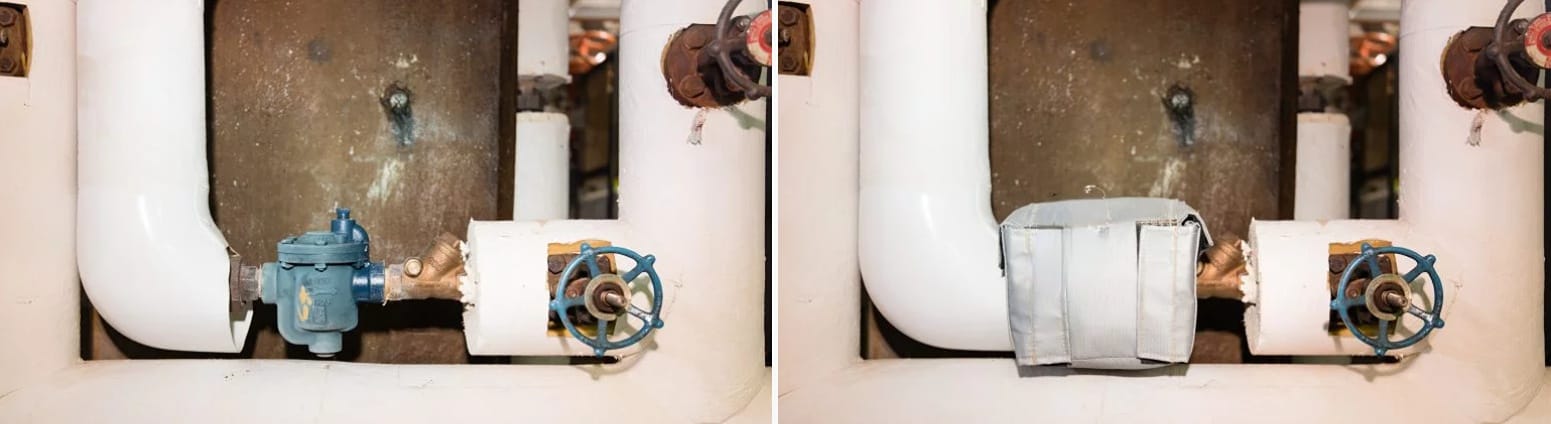

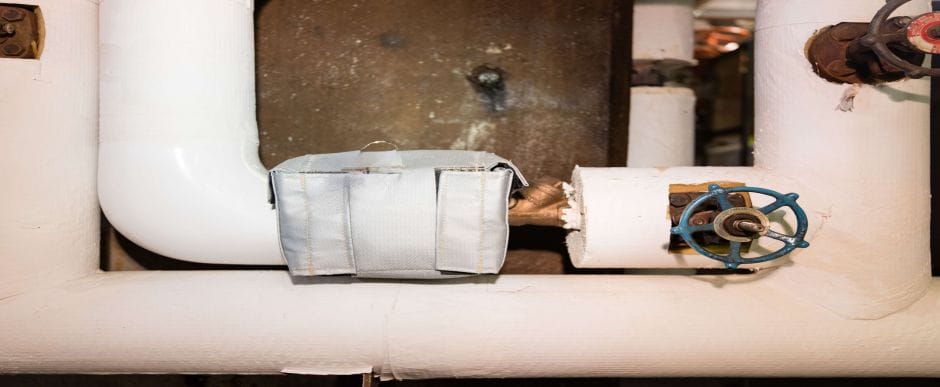

Steam trap insulation jackets are custom-fabricated removable thermal covers engineered specifically to fit industrial steam traps, condensate drain assemblies, and complete steam trap stations. Because steam traps have a notoriously high failure rate and require frequent inspection, testing, and maintenance, traditional rigid stay-in-place insulation is completely impractical, often leaving traps unexposed and wasting hundreds of dollars in energy annually per station. Constructed from high-temperature resistant coated fiberglass outer fabrics and filled with high-efficiency thermal insulation blankets, these removable jackets eliminate severe radiant heat loss, protect personnel, and allow hassle-free detachment and reinstallation for routine servicing.
2. Core Technical Parameters
-
Outer Fabric: 0.4 mm grey single-sided PTFE-coated fiberglass
-
Insulation Core: Fiberglass wool, thickness to suit the operating temperature
-
Operating Temperature: Designed to the equipment surface temperature; we have built jackets for surfaces up to about 350°C. Please ask us about higher temperatures.
-
Fastening System: Heavy-duty Velcro flaps, retention straps, and stainless steel D-rings
-
Key Characteristics: Custom-contoured fit for steam trap configurations, removable and reusable, rapid installation, excellent thermal efficiency, weather and chemical resistant
3. Common Applications
-
Industrial steam distribution networks, power plants, and chemical processing facilities featuring steam trap stations
-
Commercial heating systems, refineries, and manufacturing plants requiring energy loss mitigation on high-failure valves
-
Maintenance-heavy piping environments where frequent testing, inspection, and replacement of steam traps are required
